Mechanical Design Projects
CAD tools are used in mechanical design projects to create, analyse, and optimise mechanical systems and components. They concentrate on guaranteeing efficiency, durability, manufacturability, accuracy, and utility.

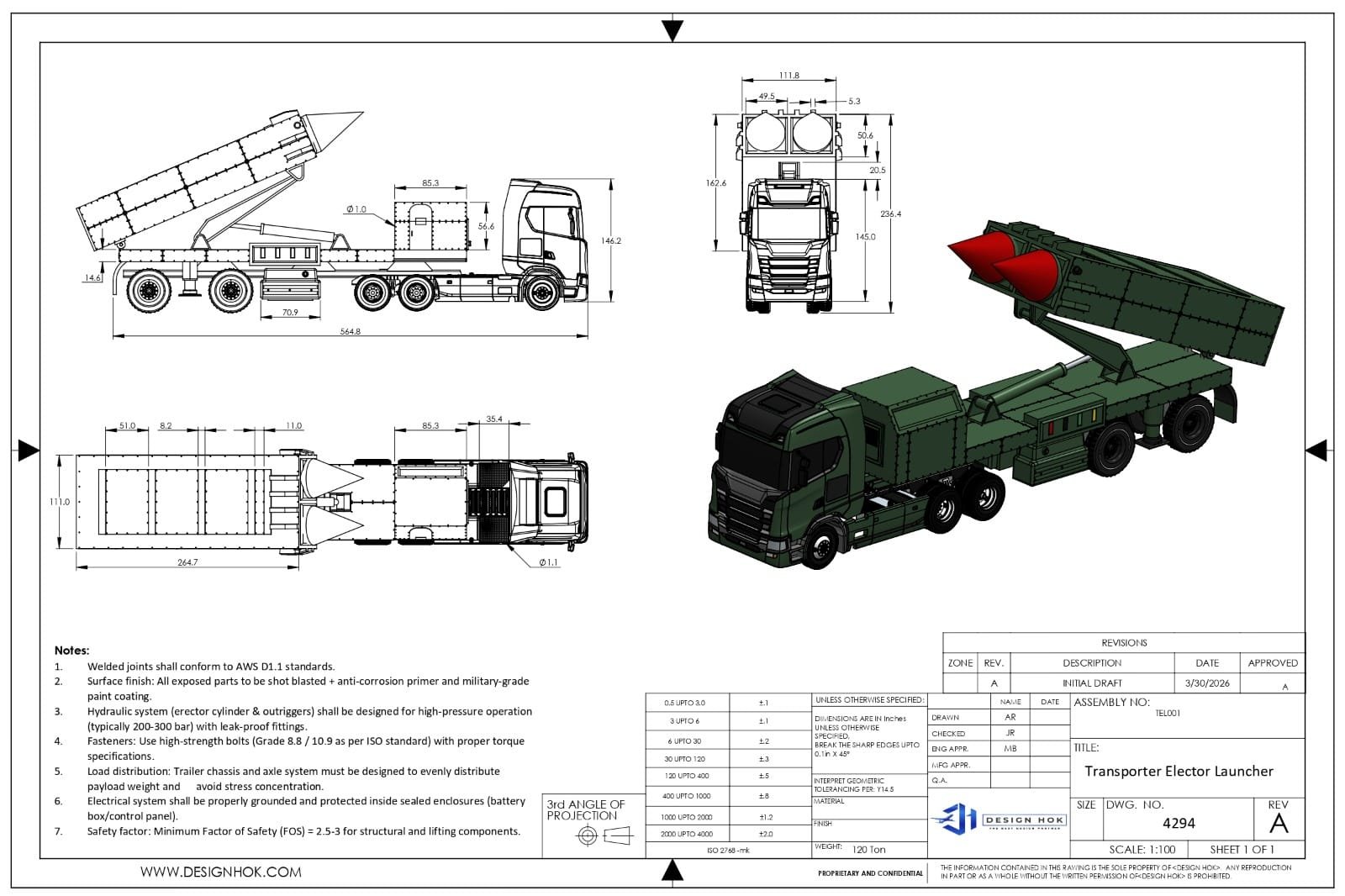

Transporter Erector Launcher is a heavy-duty, precision-engineered military system designed to rapidly transport, elevate, and deploy missile platforms, ensuring maximum stability, mobility, and operational readiness.
Thermobaric MLRS is a high-impact, precision-engineered multiple launch rocket system designed for devastating area saturation, delivering thermobaric payloads that generate extreme pressure waves.

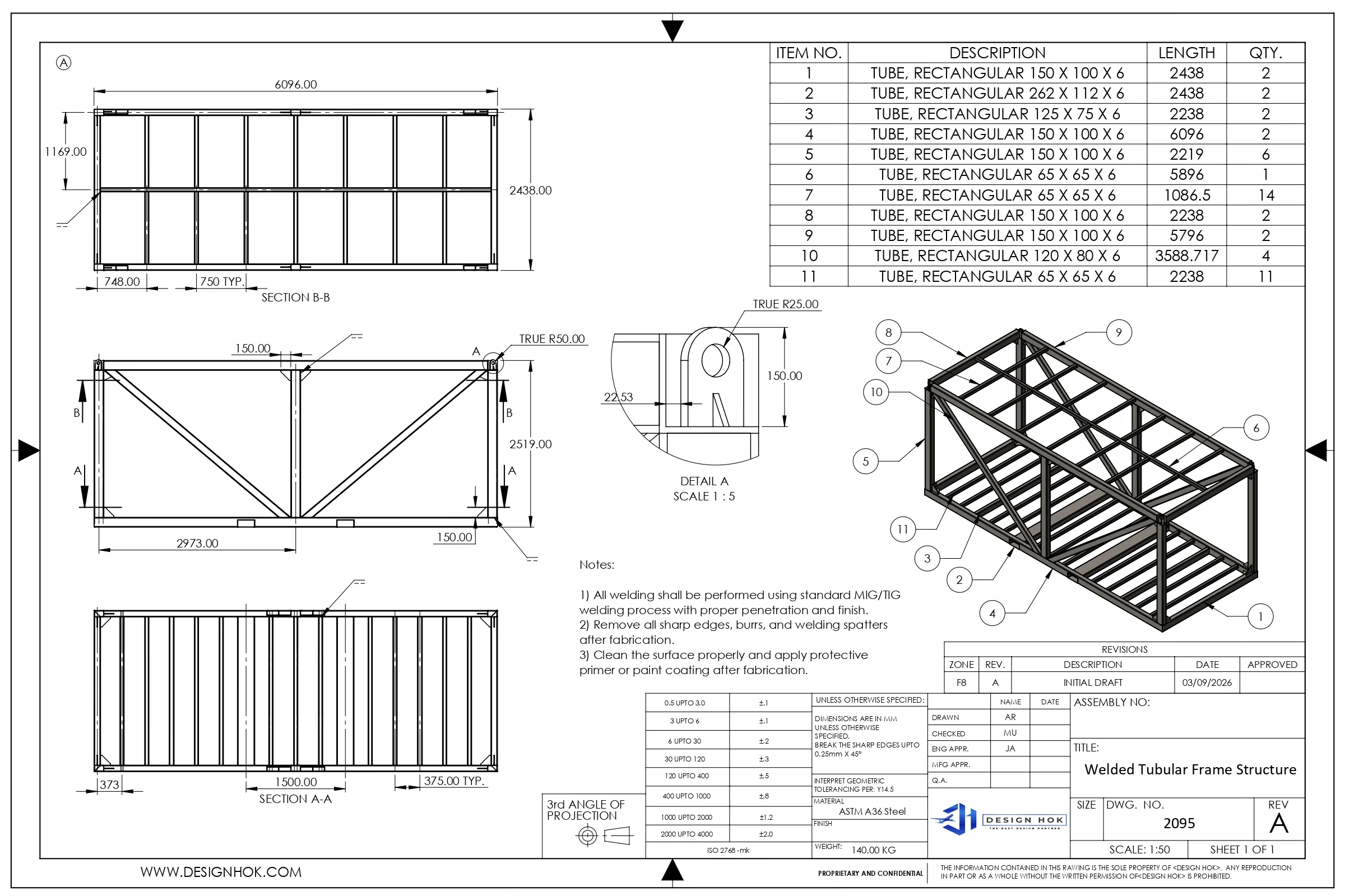

This is a Welded Turbular Frame Structure for heavy-duty utility. It’s a robust industrial skid made from ASTM A36 Steel. Measuring 6096 mm long and weighing 140kg. It features diagonal bracing and specialized lifting eyelets.

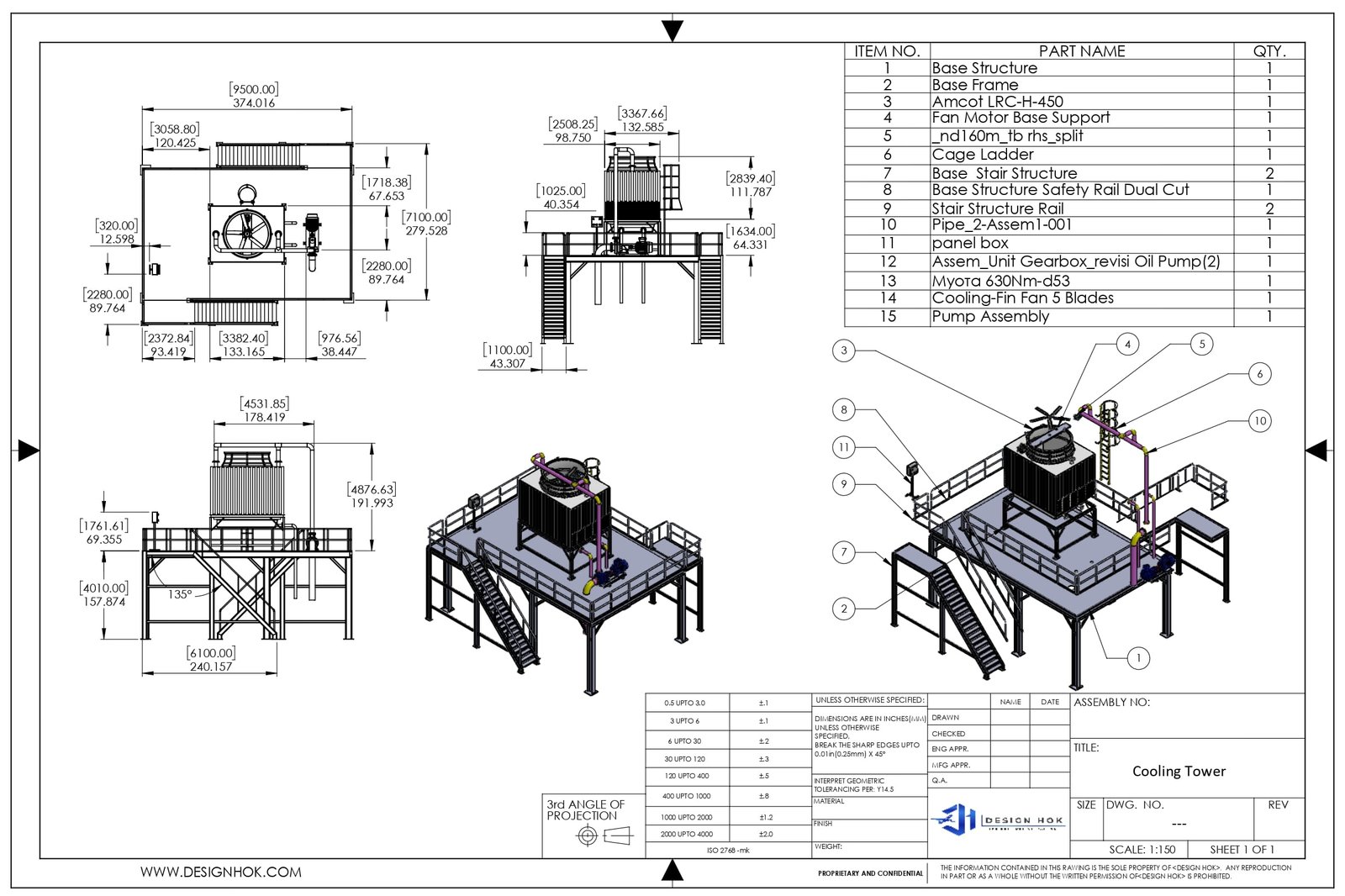

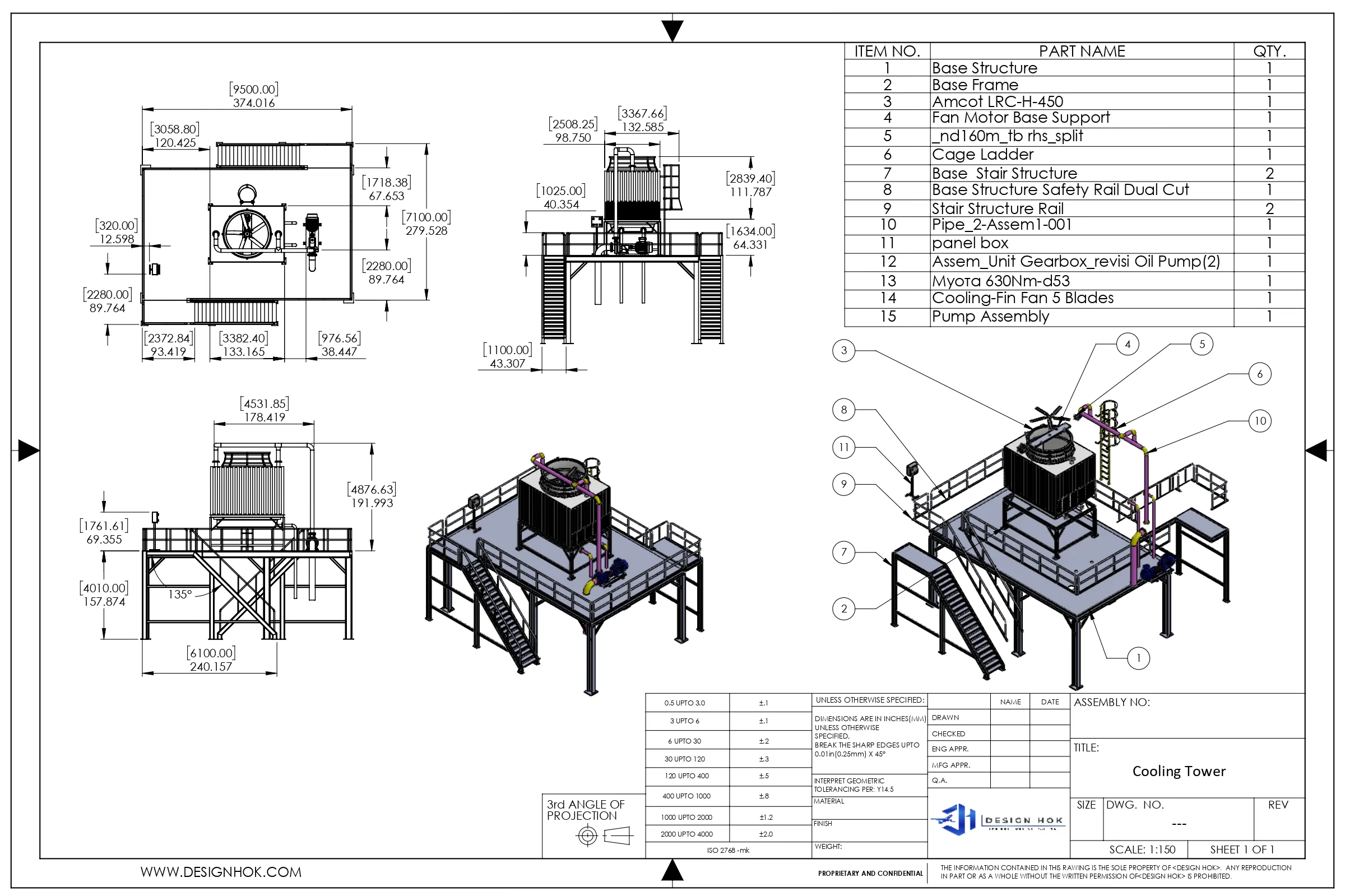

This is a detailed engineering drawing of a cooling tower, showing its well-structured frame, pump assembly, piping, and cooling fan system with proper dimensions. For industrial planning and assembly.

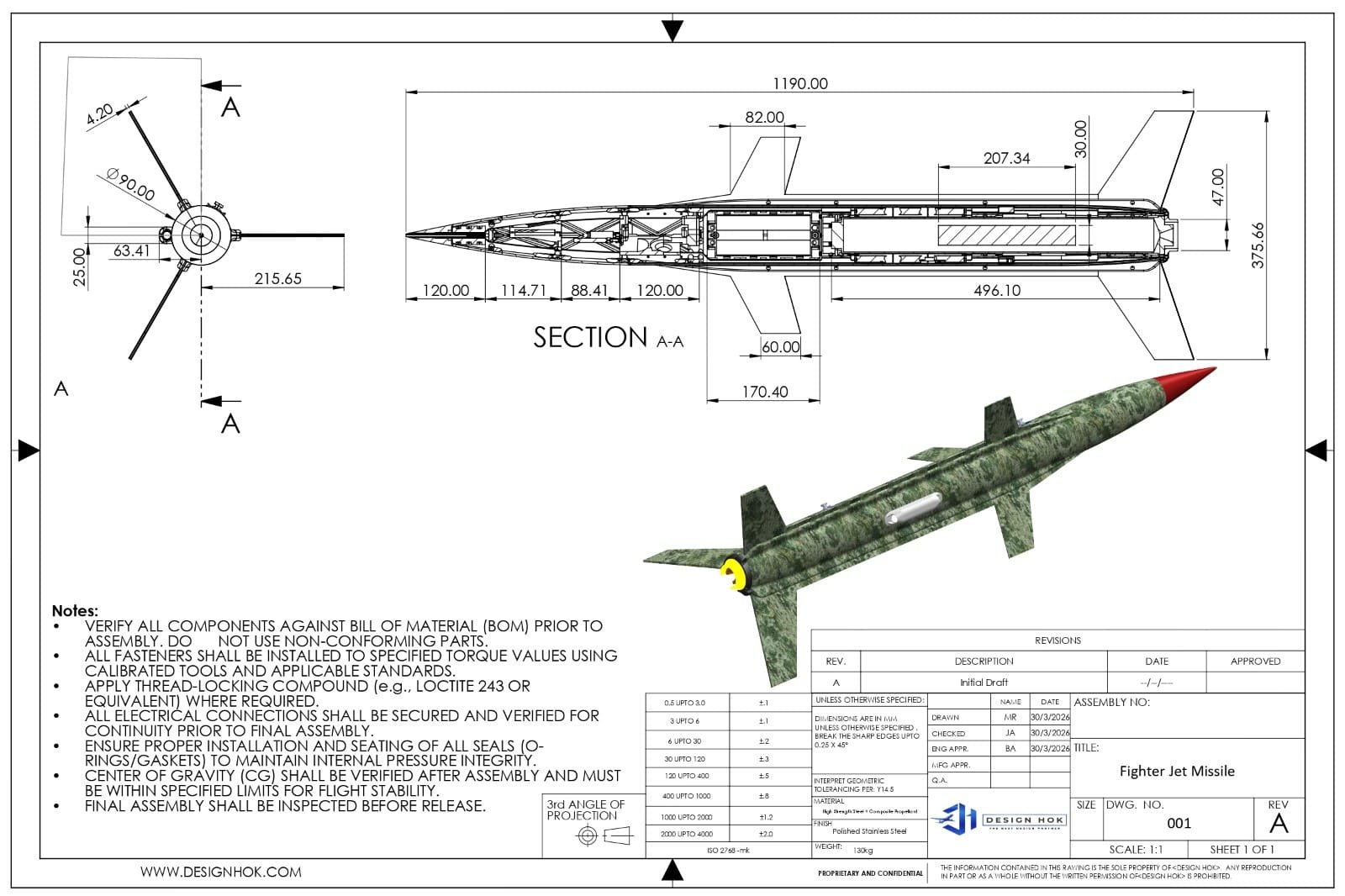

With enhanced target tracking, supersonic propulsion, aerodynamic stability, and deadly accuracy for superior air-to-air and air-to-ground warfare, fighter-jet missiles are precision-guided aerial weapons.

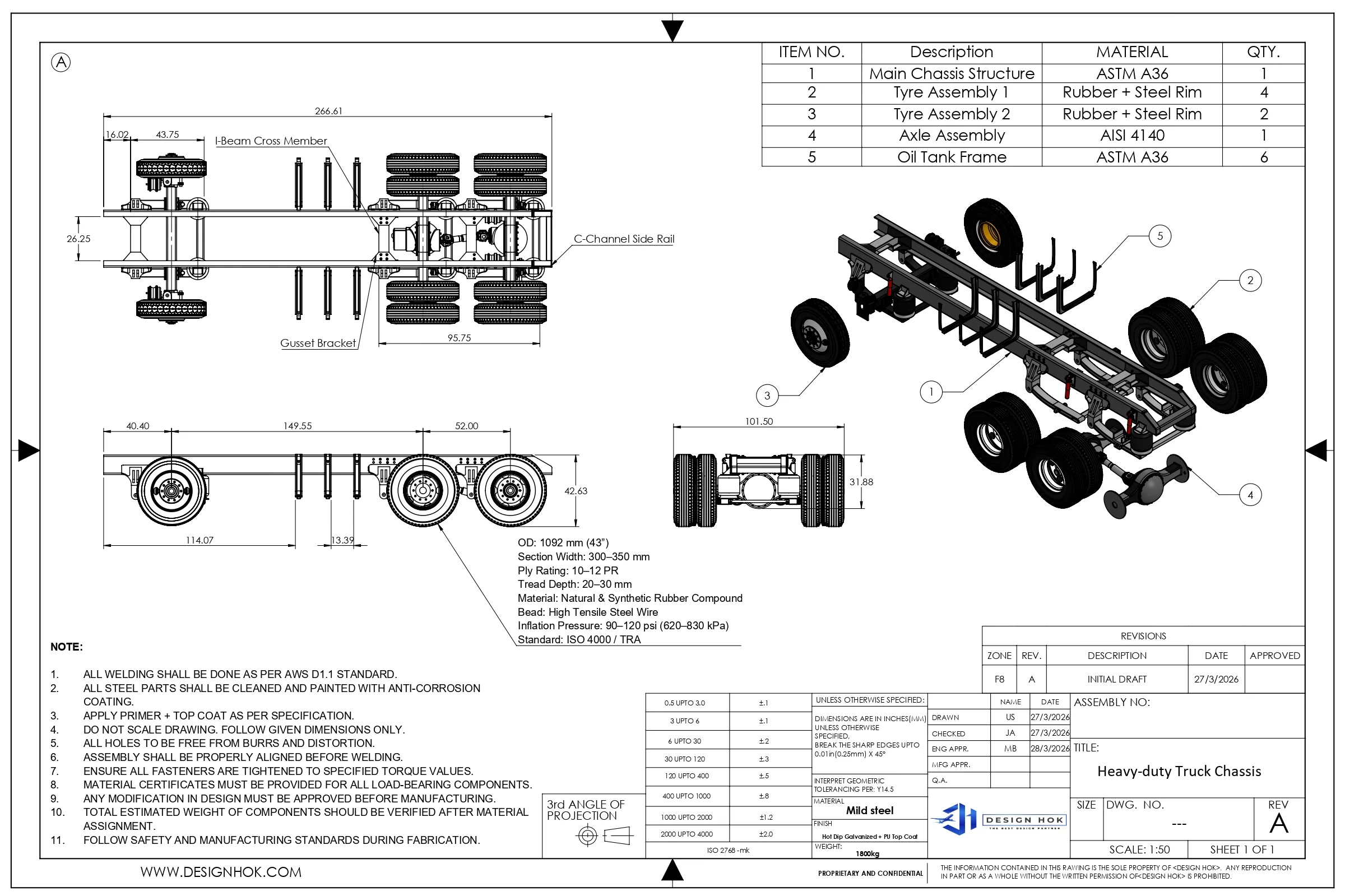

As this is something designed for logistics, the (Heavy-duty Truck Chassis) is a reinforced ASTM A36 steel assembly. It features an AISI 4140 axle and six tires. Fabrication requires AWS D1.1 welding and anti-corrosion coatings.

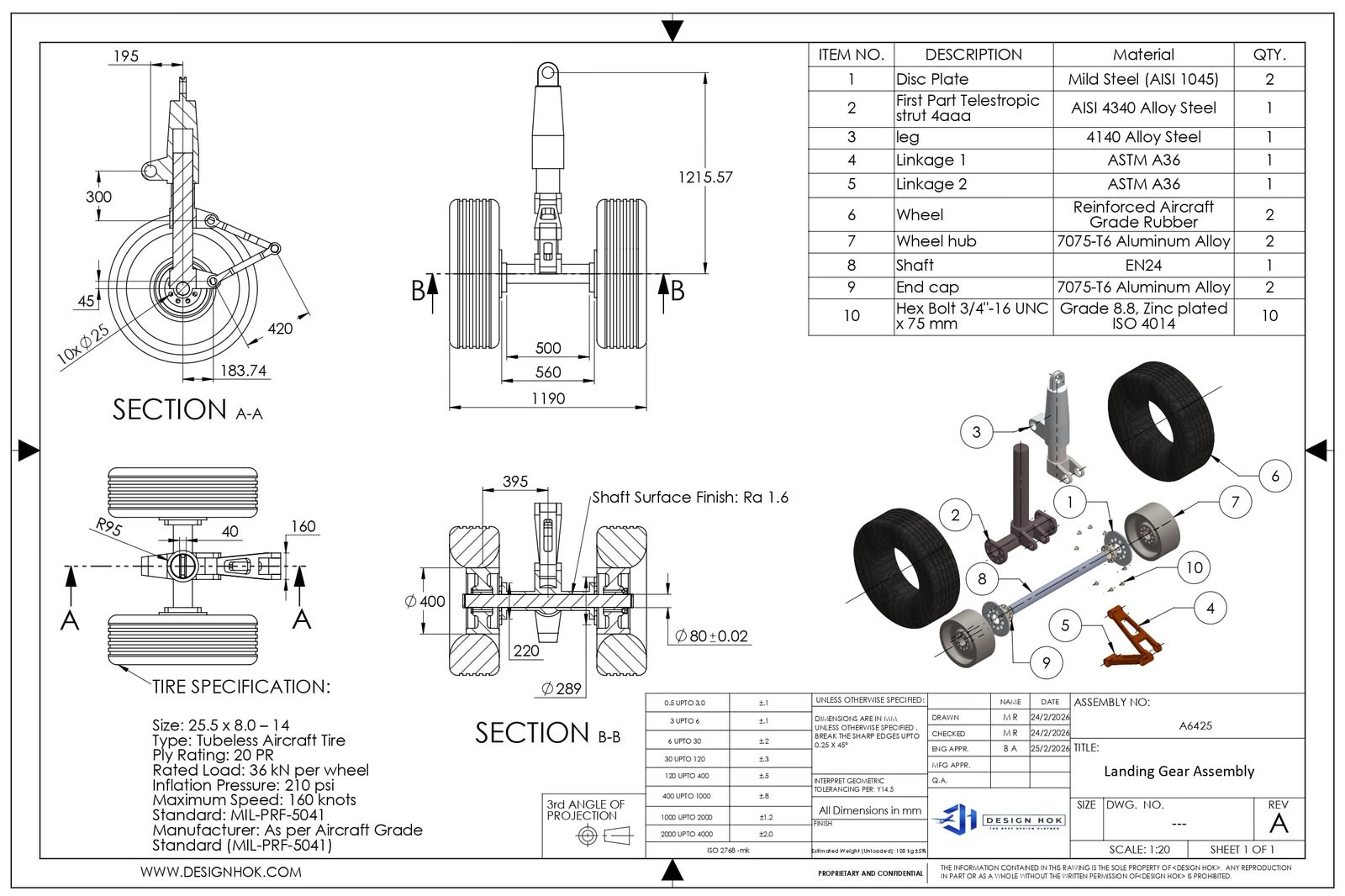

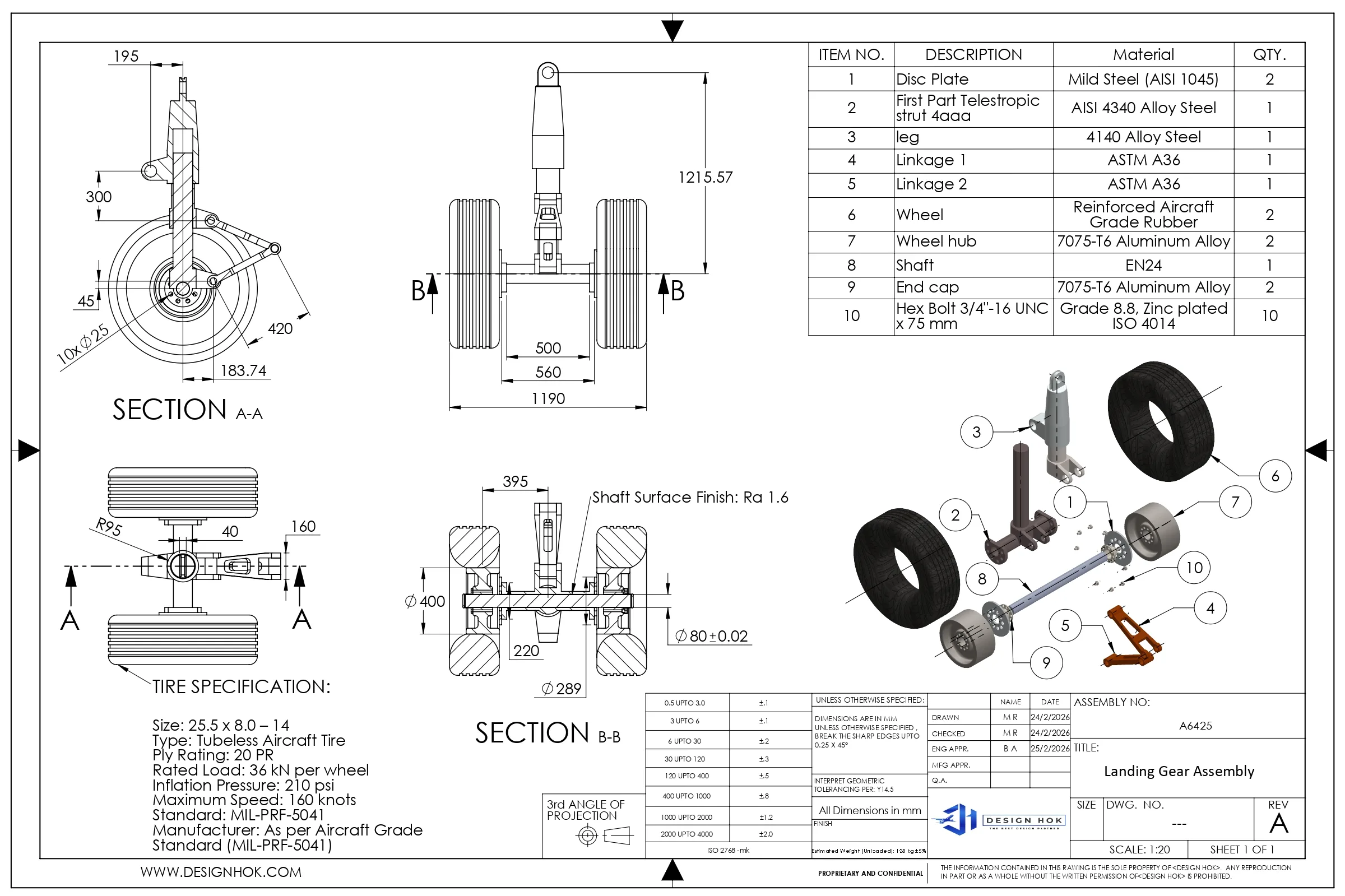

It’s a detailed engineering drawing that represents an accurately designed landing gear assembly used in mechanical engineering applications. It includes sectional views, dimensions, & material specifications.

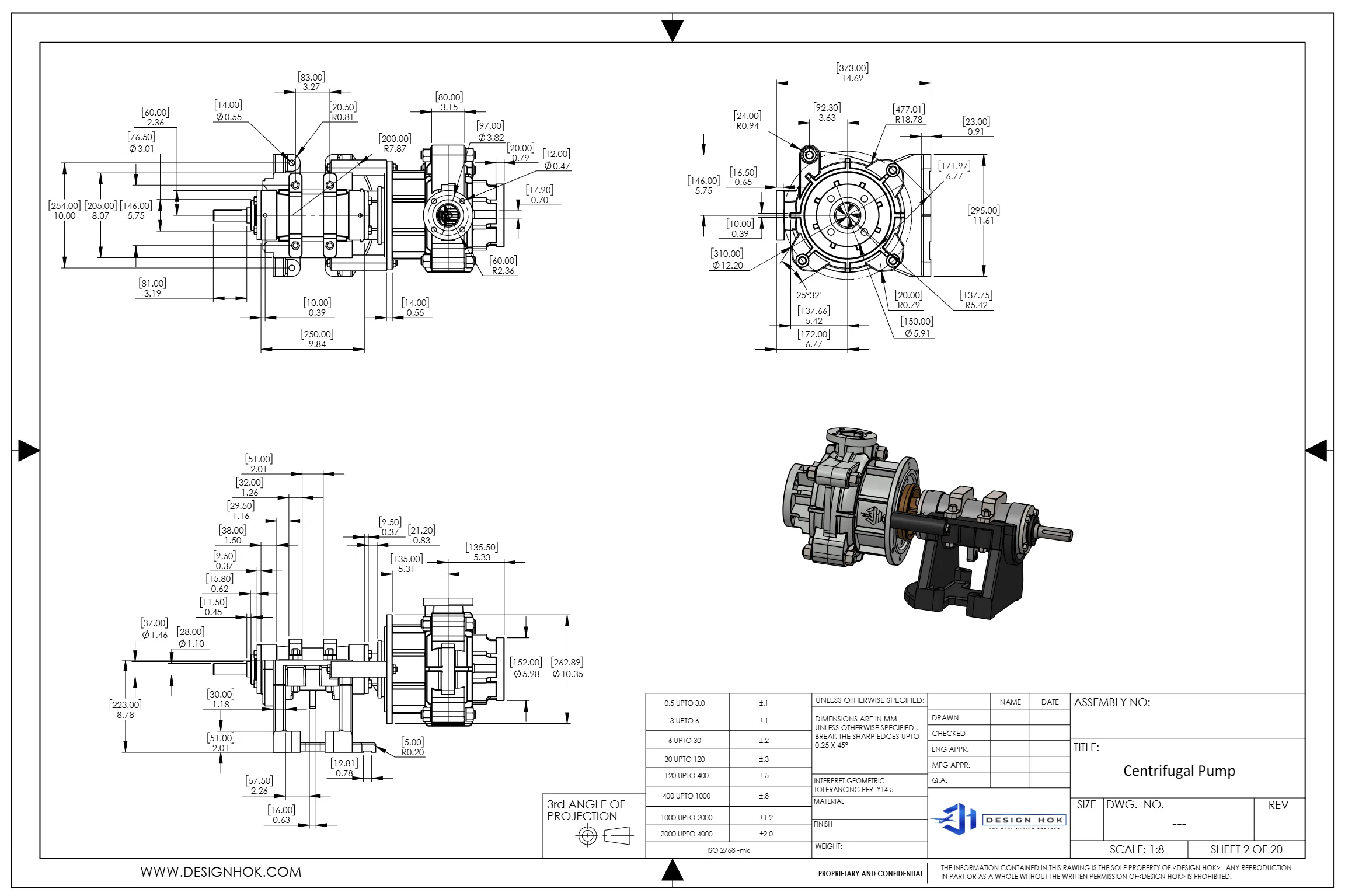

A high-efficiency fluid transfer system designed for continuous flow, centrifugal pumps use rotational kinetic energy to produce pressure, guarantee smooth hydraulic performance, and stable operation.
WORK PROCESS
99%
High Quality Work
15+ Years Of Experience
95%
24 / 7 Online Support
Here for You, Day and Night!
100%
Satisfaction
Delivering Results That Satisfy.
Thermobaric MLRSÂ

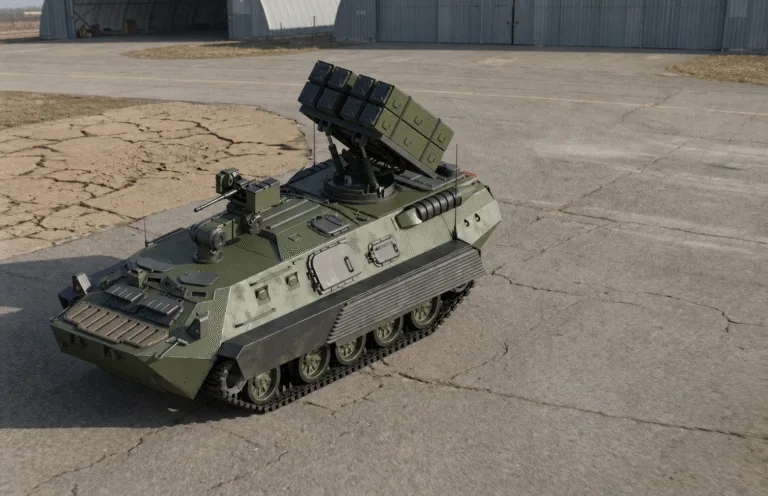

In the high-quality render, a modern armored vehicle is placed in an airfield. With an intricate design, showing off interior mechanisms as a tracked system and even a missile launcher. Shadows and reflections are balanced for a very natural outdoor feeling. At Design HOK, we created a modern armored vehicle, ideal for presentations, portfolios, or marketing. A Thermobaric MLRS is a perfect example of demonstrating engineering precision and uncompromising 3D visualization skills. A Thermobaric MLRS is a powerful weapon system and a powerful approach to defence.Â
We provide custom, efficient, and long-lasting mechanical design project solutions using the latest engineering tools and advanced technologies. Our focus is on delivering accurate mechanical design and engineering drawings that meet international professional standards.
